Features & Application

Features

Low capacitance drift

Keep reliable quality after toluene cleaning

Easy reading of the capacitance with color-code

High durability from vibration, dust, moisture and flux

Small size with external dimension of
3.2[W] x 4.5[L] x 1.5[H] mm for STC3M SERIES

Designed for reflow soldering [surface mount applications]

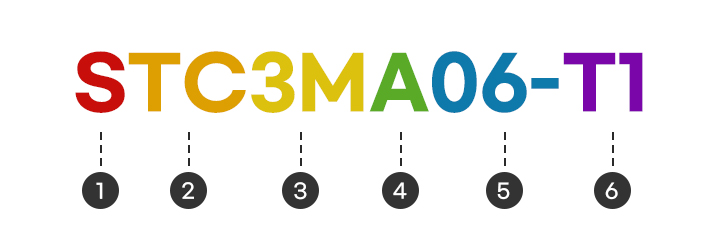

Part Numbering

① SEHWA Company Name

② Trimmer Capacitor

③ Product Size[MOLD] 3M : 3mm

3M : 3mm

④ Temperature Coefficient [ppm/℃]

A : NP0, B : N750, C : N900, D : N1300, E : N1300

⑤ Nominal Maximum Capacitance

03 : 3pf, 06 : 6pf, 10 : 10pf, 20 : 20pf, 30 : 30pf

⑥ Packing Method

T1 : 1,000 pcs/reel [12mm Tape&7inch Reel]

T3 : 3,000 pcs/reel [12mm Tape&13inch Reel]

BO : Bulk Type

Application

Two-Way Radio Communication (FRS, GMRS, LMR)

Remote keyless entry system

Car Alarm Remote Controller

Measuring instrument

PETBLE SmartTag

Traffic card reader

Wireless microphone

Security System

Cordless Phone

Wireless repeater

Wireless S/W

TCXO, VCXO

RF Module

Car Audio

RFID

DVD
